Testing Eletec TWN4 Reader for Magicard Printers

Modified on Fri, 7 May, 2021 at 10:02 AM

There is a test tool available for the Elatec TWN4 MultiTech 2 encoder.

You can download it from here;



https://techs.magicard.com/tmp/elatec_test_tool.zip



Extract the MSI installer from the zip archive and run it.

It doesn't create a desktop shortcut, and calls itself SmartTesting.


If you want to find the folder it is in the create a shortcut, it is in

Program Files (x86)\Magicard\Magicard Gen 2 Elatec Testing Tool

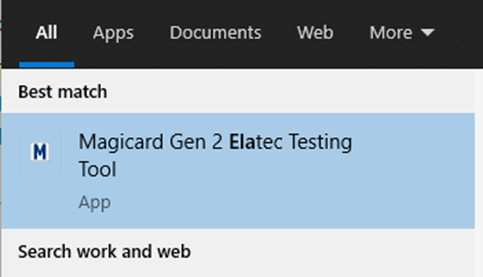

But you can search for it in the Start menu

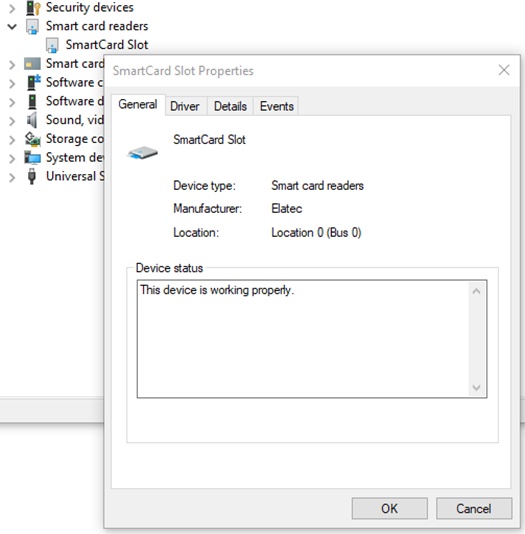

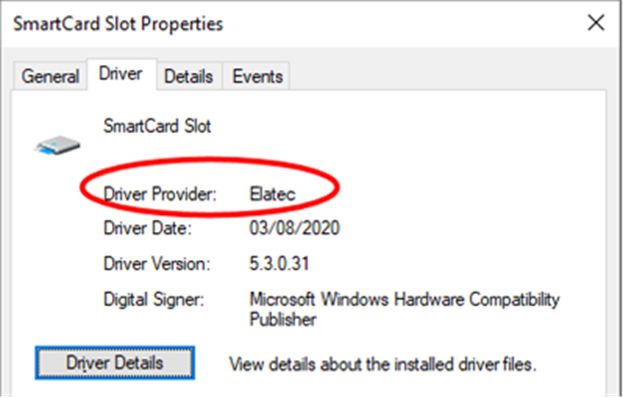

First part of the test, look for the encoder either in Device Manager;




Or in Devices & Printers (on the Devices section at the top) however, you should see the actual encoders;

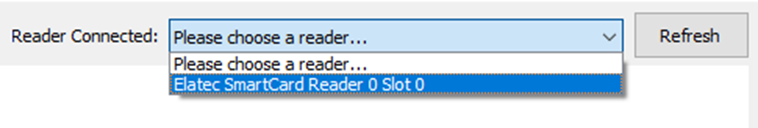

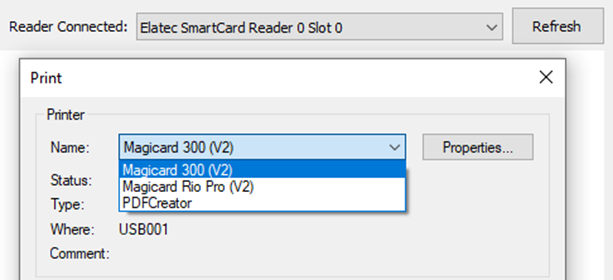

To test, run the SmartTesting utility;



You won’t see much until you click the Check ATR button (even without a card present);





Clicking that button without a card present will show;

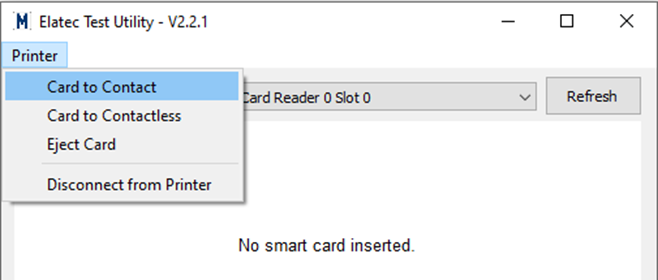

Load a card to the contactless encoding position in the printer here;



Printer Properties -> Encoding -> To contactless encoder -> Move





Once the card is in position, click the Check ATR button;

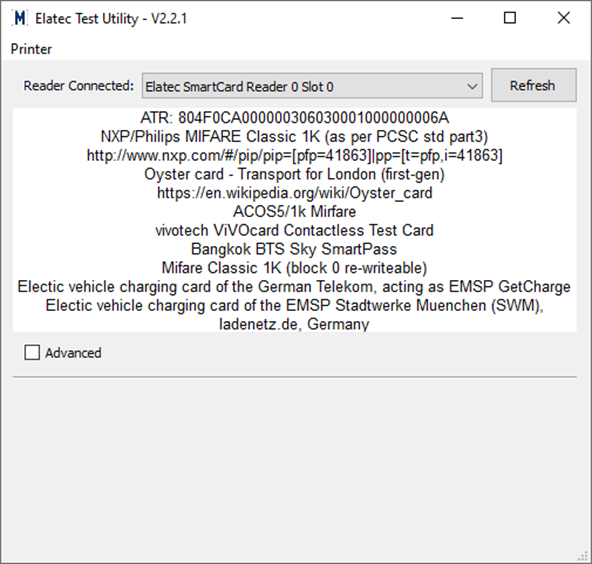

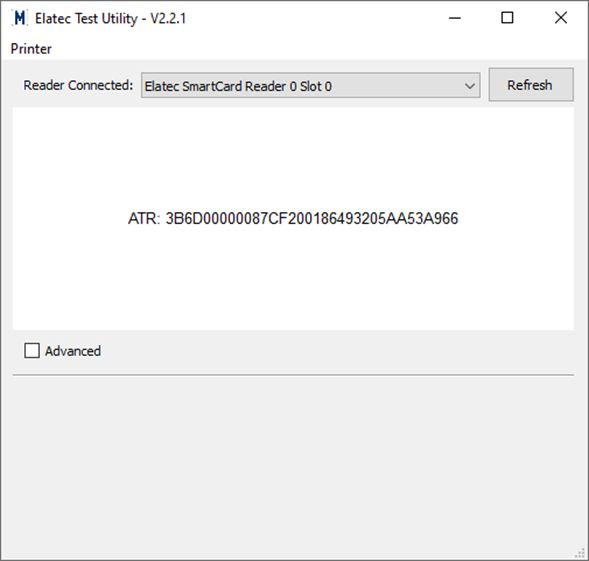

You should then see the ATR (answer to reset) from the card;





It's a basic utility at the moment but Magicard are hopeful it will have more features in the future.
